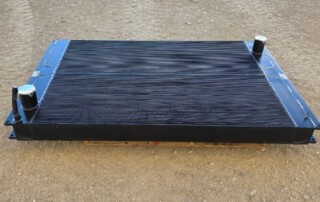

Here’s some pics of an aluminum bar-and-plate radiator & intercooler cooling stack for a Caterpillar 6060 shovel we delivered back to one of the mines. Both the radiator & the aftercooler received a recore with new heavy duty high efficiency cores. The 6060FS shovel has two engines so the machine takes two of these cooling [...]

Here’s some pics of a dual radiator & lo-temp aftercooler cooling package we rebuilt & delivered back to our customer. The radiator module is for an Ingersoll Rand, or DML, drill rig. The radiator is a bolt-on, or bolt together, type with steel top & bottom tanks & a heavy duty copper & brass core. [...]

Here’s some pics of a diesel fuel tank off of a 2006 Case Backhoe that came in leaking. We first thermal cleaned the tank before repairing the area of the leak. After welding we discovered the bottom plate or floor of the tank was cracked. After getting the crack all welded & sealed up we [...]

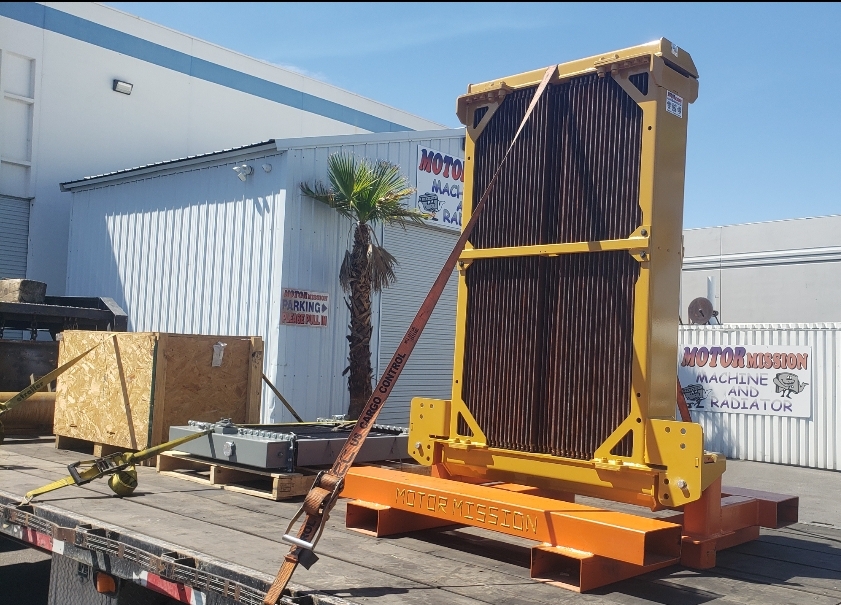

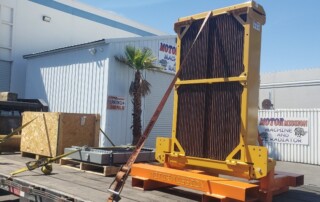

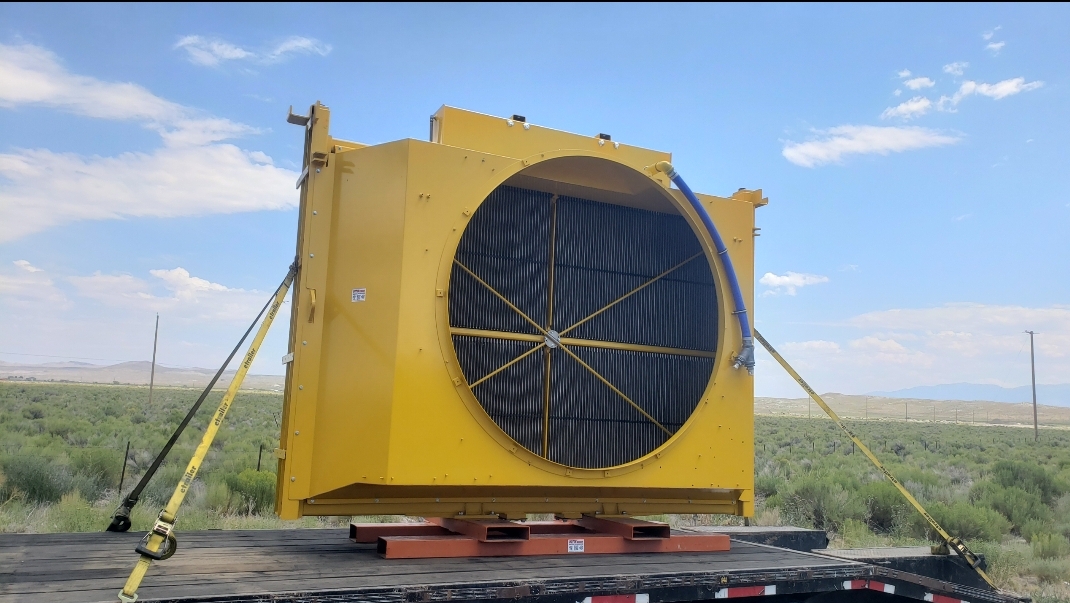

Here’s some pics of a Caterpillar 793F Mesabi radiator we're finishing up the rebuild and overhaul to. Today we sunk the radiator in our test tank to put it through a rigorous pressure test to make sure it doesn't leak. After passing the pressure test it will move on to the assembly area to get [...]

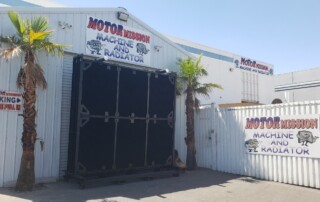

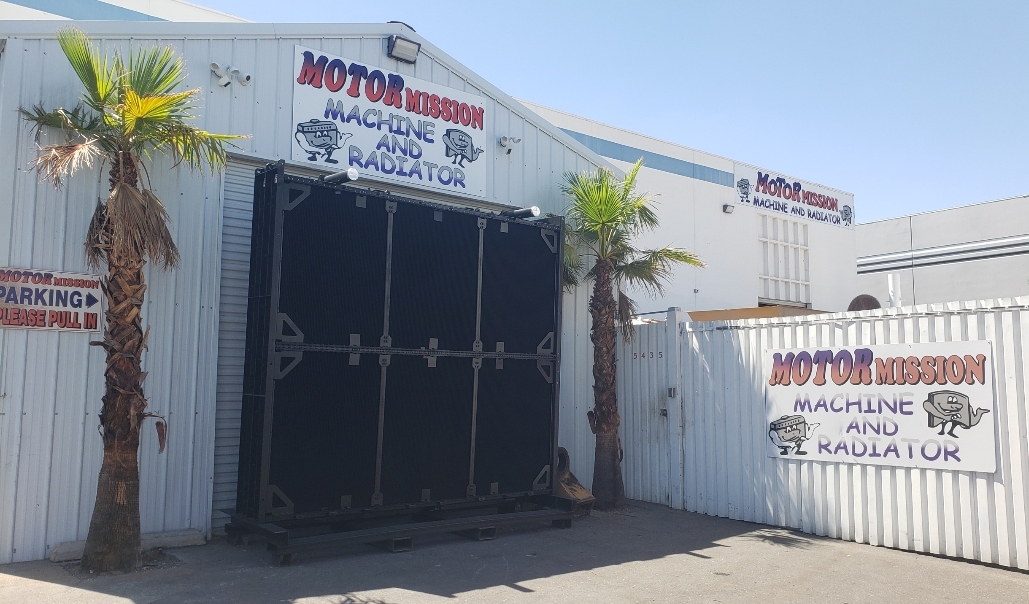

Here's some pics of a Caterpillar 793C folded core radiator at different stages of the rebuild process. One pic shows the radiator in its disassembled state. After the rebuilding process the radiator was tested for two hours at various pressures to ensure it is leak free. This radiator went into our exchange inventory & ended [...]

Here's some close-up pics of a Mesabi radiator that was leaking in a Komatsu 830E-5 haul truck. When we arrived onsite coolant was leaking from one of the Mesabi radiator tubes on the engine & fan side of the radiator. After locking out the machine, draining the coolant & the fan guard removed we were [...]

Here’s some pics of a rebuilt exchange Caterpillar 793C folded core radiator we delivered to a customer. They needed an exchange radiator to change out in one of their haul trucks. Once they get the old radiator mounted on our stand we will get it picked up, do a complete overhaul to it & put [...]

Here's some pics of an all metal copper brass radiator we rebuilt for a Toyota 4Runner. The top brass tank was cracked & leaking around the fillerneck area so we replaced it with a new tank. The core received a rod & repair along with re-running the top & bottom headers. Running the headers means [...]

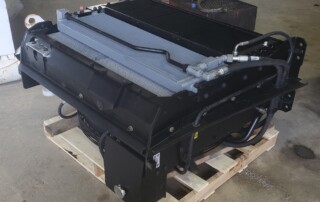

Here’s some before & after pics of a hardnose cooling package we overhauled. Also referred to as a nosecone, this one is off of a Caterpillar 740 articulated truck. Inside the hardnose, or nosecone, housing is the radiator, oil cooler, ac condenser, fan, fan drive & a few other cooling system components. 5435 Desert Point [...]

Here's some before & after pics of an Ingersoll Rand DML drill rig radiator & lo-temp aftercooler we reconditioned. The radiator portion is a bolt-on with a conventional flat fin core & six rows of tubes. The LTA, or lo temp aftercooler, is an all aluminum heat exchanger which is constructed with a bar-and-plate core. [...]
