Here are some various pics of some industrial and commercial radiator rebuilding we're doing for some of our fleet customers. These are all copper and brass bolt-on radiators. Bolt-on means the tanks bolt up or onto the headers of the radiator core rather than being soldered on like most typical passenger car and truck radiators. [...]

Here's some pics of some Komatsu 830E haul truck radiators as well as some mining drill rig radiators and oil coolers that we picked up from some of our mining customers. The last two pics are of an 830E radiator that we rebuilt and delivered. These pics give a good perspective of how the radiators [...]

This is a Komatsu 830E mining haul truck radiator that we finished rebuilding and delivered back to one of our mining customers. This particular radiator has just under 1500 individual tubes altogether between the lo-temp and hi-temp radiator halves. We specialize in radiator rebuilding for anything such as small power equipment all the way up [...]

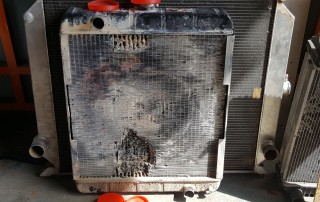

Here are some before and after pics of a Caterpillar 834H rubber tire dozer radiator hardnose assembly we rebuilt. The hardnose is basically the grill shell that contains the radiator, aftercoolers, oil coolers, and AC condenser. The radiator got a complete rod and repair overhaul and the coolers all got cleaned, flushed, ultrasonic [...]

Here's some pics of a Komatsu 830E haul truck L&M Mesabi radiator that we're in the process of repairing and rebuilding. In these pics you can see the two halves are separated. One half is a lo-temp radiator and the other half is a hi-temp radiator. One half is completed and one half [...]

This is a 1923 Durant Star radiator that came in with a lot of leaks. We ended up recoring it with a new core. The top and bottom tanks were pretty beat up so we straightened them up as much as we could without destroying them. The radiator is in good sound shape [...]

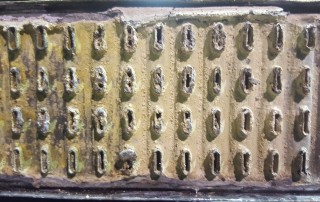

Here's some before and after pics of a radiator that came in off of a 1964 Chevrolet Chevelle. The original core had nearly all of its tubes plugged solid internally. Since the original core was so badly corroded internally we recommed recoring the radiator with a new high efficiency core and our customer [...]

Here's some small to large radiator projects we have going in the radiator shop. There's a custom copper and brass 1950's Chevy truck radiator, a bolt-on radiator core that we've ran the headers on with new solder, some Caterpillar folded radiator cores going through the reconditioning process, a copper and brass radiator in [...]

Here's some pics of various parts we're working on in the radiator shop. The first couple of pics are a load of L&M Mesabi radiator tubes that are going through the cleaning and reconditioning process. The two aluminum charge air coolers are Caterpillar D10T dozer aftercoolers that we re-cored with new heavy duty [...]

This is a load we picked up from one of our mining customers. The small radiator is a Caterpillar 16G grader folded core style unit. The orange radiator as well as all four of the hydraulic oil coolers are off of a Hitachi EX5500 shovel. They're all coming in for complete overhaul rebuilding [...]
