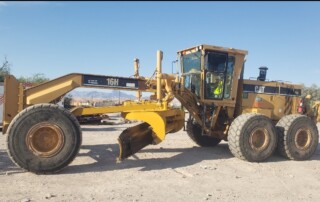

Here’s some pics of a Caterpillar 16M grader circle & drawbar assembly we rebuilt & delivered back to our customer. The drawbar & circle were completely disassembled for cleaning, blasting, maganfluxing for cracks, welding & machining. After all repairs were made & everything machined back to spec they were reassembled. The circle & drawbar were [...]

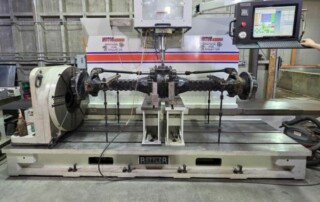

Here's some progress pics of a Caterpillar 16M Grader Axle we're rebuilding. There are some pictures during disassembly of the axle assembly along with some setup for machining pics. The spindle housing & lean arm have been blasted so they can be dye checked for cracks. After they pass the crack detection & inspection process [...]
Here’s some pics of a PHE, Plate Heat Exchanger, we picked up for servicing. This plate frame Heat Exchanger has two hundred & forty six plates. Each plate will be removed for cleaning & inspection. Once all the plates have been qualified for re-use or replaced as necessary we will reinstall the plates into the [...]

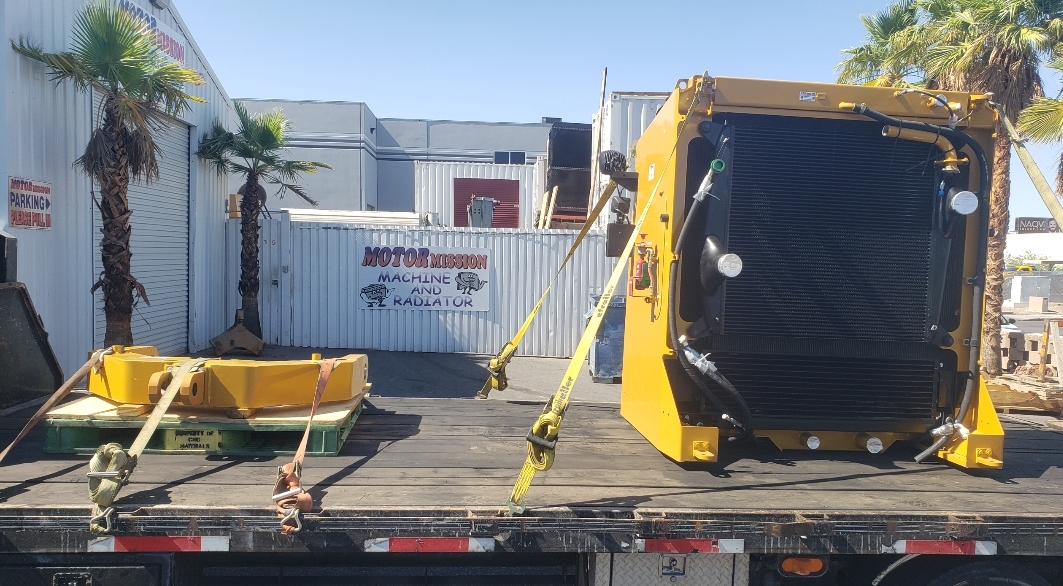

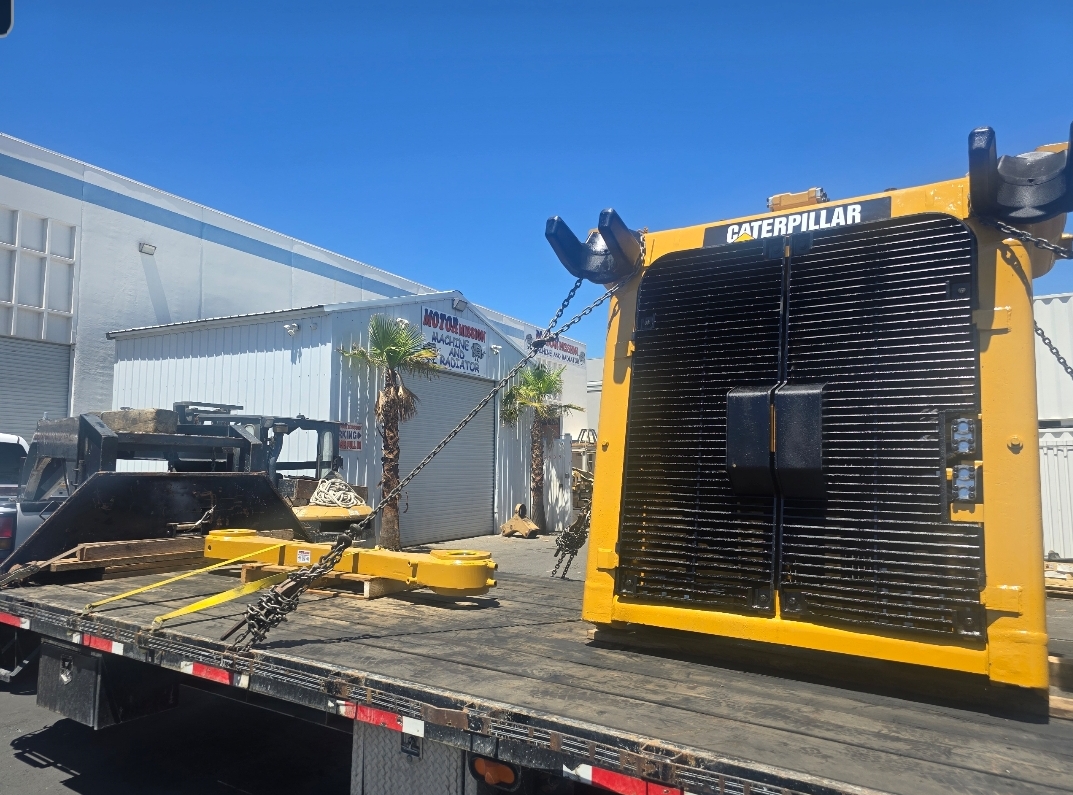

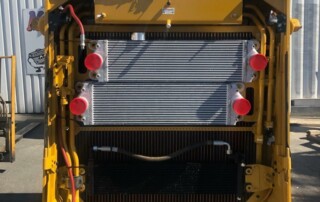

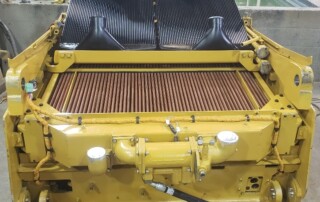

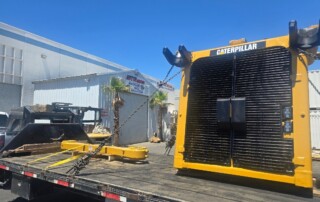

Here’s some pics of Caterpillar D10 bulldozer hardnose cooling package we reconditioned. This cooling package is off of a newer Cat machine which can be recognized by the new style logo which represents the power edge or modern hex era of equipment. All of the cooling system components such as the radiator, the two aftercoolers, [...]
Here’s some pics of an a-frame that we replaced the yoke in. The a-frame is the rear axle diff housing support for a Caterpillar 793C haul truck. The bore is where the hitch pin goes & the bore & bolt holes around the bore normally come in with several cracks. The center piece where the [...]
Here’s some pics of some Cat #207-7321 steering stabilizers we have in for repair. We call these bellcranks or y-links. The two smaller bores are tapered on the ID which houses the tapered ballstuds. The larger bore is a split bore with a key slot for retaining the main pin. We repair these according to [...]
Here’s some pics of a Caterpillar 793C steering stabilizer bellcrank we delivered to one of our customers. The single bore on the one end is a split bore which we machine true & then fit with a split sleeve that we make in-house. The other end has two tapered bores which we also machine true [...]
Here's some pics of a 16M Caterpillar grader circle assembly we're repairing. The teeth that the circle drive pinion gear engage with to spin the circle & moldboard are worn to almost nothing. We cut the bad teeth out & fit the circle for new segments. Once the new teeth, or segments, are tack welded [...]
Here’s some pics of a Caterpillar 18M grader circle & drawbar assembly we delivered back to one of our mine customers. We gave the circle, the drawbar, the drive, the drive motor & the blade hanger, or carrier, a complete repair & rebuild. The teeth of the circle were worn down to a sharp edge [...]

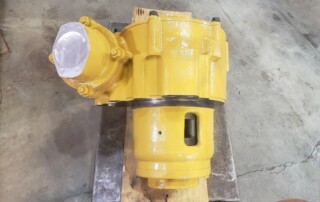

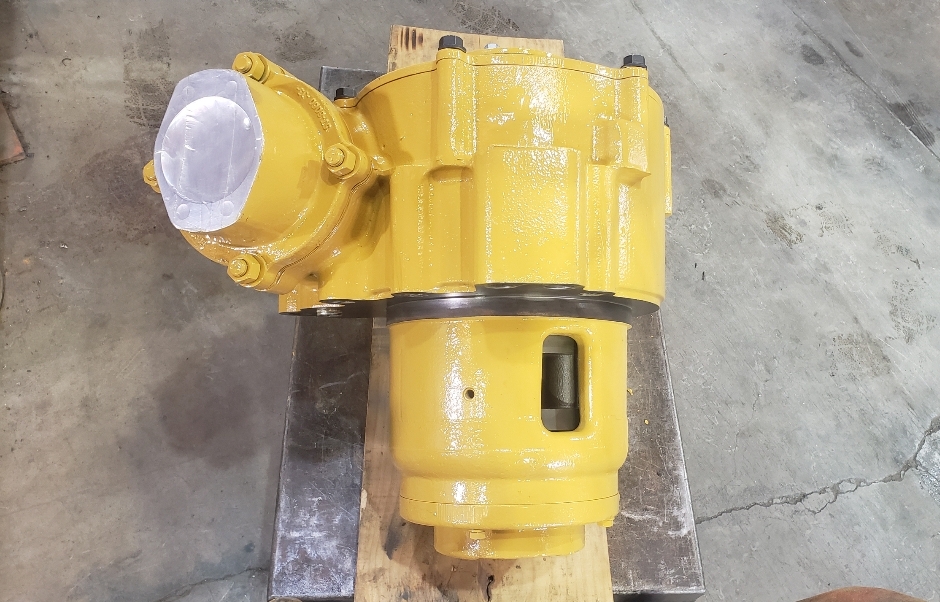

Here’s some pics of a Caterpillar 16M grader circle drive going through our repair & rebuilding process. Th bronze 450-6182 gear & the worm gear are getting replaced. Some of the bores inside the housing need to be machined, welded or sleeved & bored back to specs. The circle drive spins the 558-2101 pinion gear [...]
