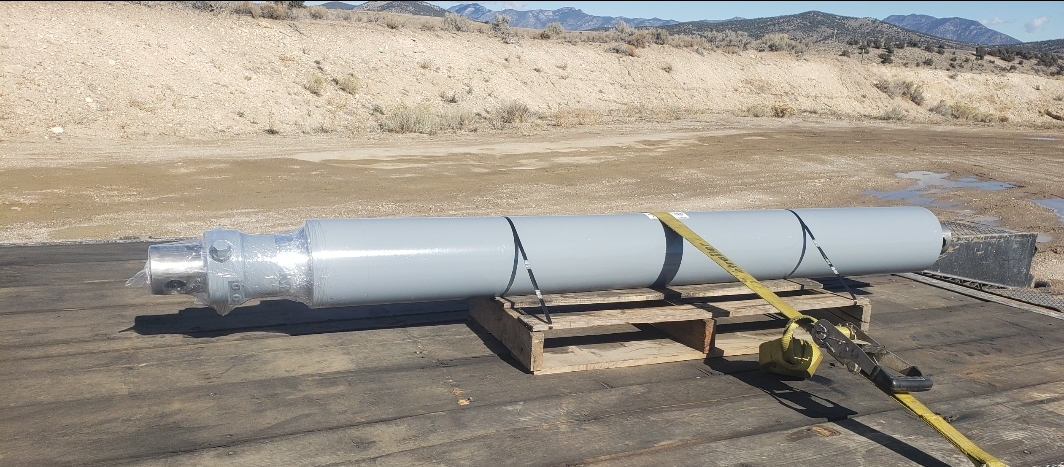

Here are some before & after pics of some hydraulic cylinders we rebuilt. The black cylinder is for a Caterpillar 834K wheel dozer. The part number on it is a 3839075. Thr two yellow cylinders are for a Caterpillar D10R dozer & they are both a part number 7T3829X. All three cylinders were completely disassembled, [...]

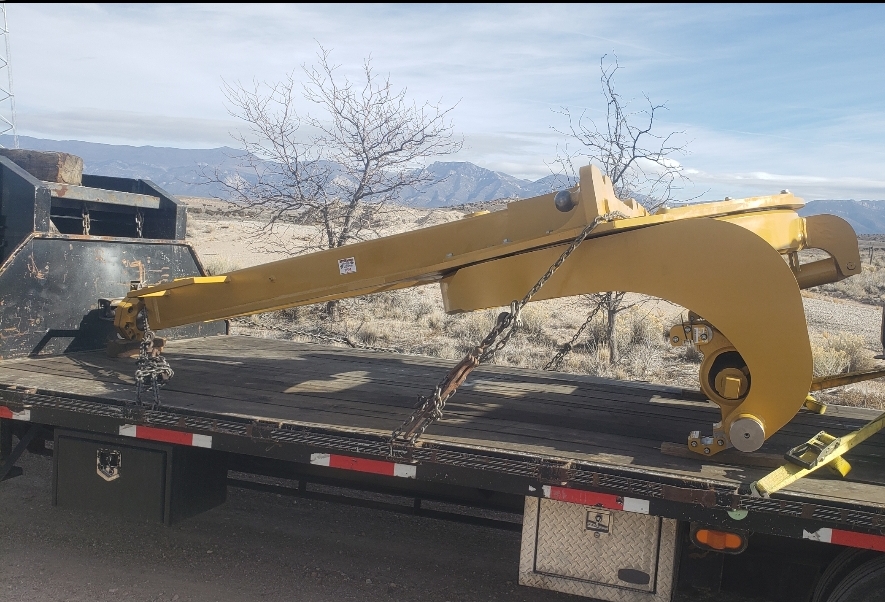

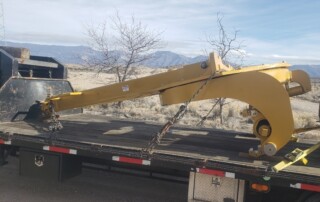

Here are some pics of a Caterpillar 18M3 grader circle, drawbar & blade hanger we rebuilt. The entire circle assembly was disassembled so each piece could be checked for cracks, prepped & welded where needed. All the bores as well as any machined surfaces were machined to true them up, then built back up with [...]

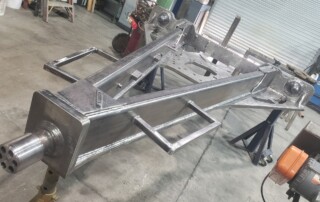

Here are some random pics of our guys working on a Caterpillar 18M grader drawbar. The circle that hangs from this drawbar has be repaired with new segments (teeth) welded in place. The drawbar is getting the cracks repaired & the new ballstuds are getting welded in place. Motor Mission Machine & Radiator 5435 Desert [...]

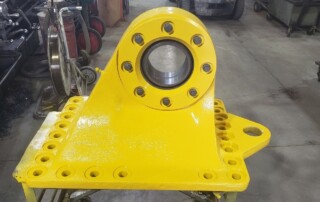

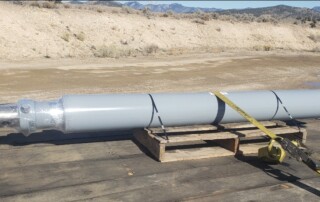

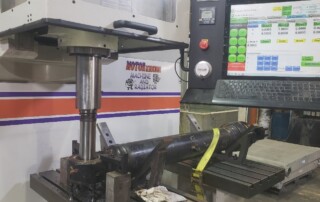

Here are some pics of a hydraulic lift cylinder we have in for rebuilding and repair. The bore on the head end takes a spherical ball and race assembly. The bore as well as the snapring grooves that retain the spherical ball in place were damaged & worn. We set the cylinder up on our [...]

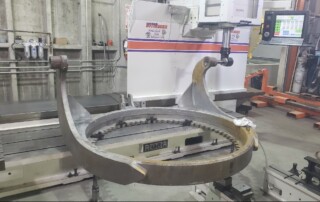

Here are a few pics of a Caterpillar 16M grader circle assembly we're machining the bores on. With our Rottler CNC boring & milling machine we are able to mount large parts & engine blocks for precision line boring as well as many other milling & machining operations. Once the circle assembly is securely mounted [...]

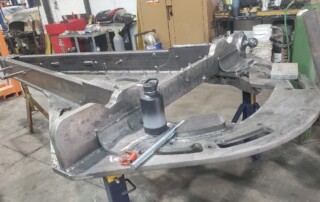

Here are some pics of a drawbar, or table, we're rebuilding for a Caterpillar 18M Grader Circle Assembly. Both main beams were cracked so we cut them completely off the table. We cut some new main beams to size & welded them to the table. While the main beams were off we straightened the table [...]
Here are some pics of a hardnose cooling package we have in for a complete overhaul. The nosecone, or hardnose, is off of a Caterpillar 994K loader. In the middle of the hardnose between the hydraulic driven fan & all the aluminum oil and aftercoolers are the AMOCS radiator cores, or sections. We will be [...]

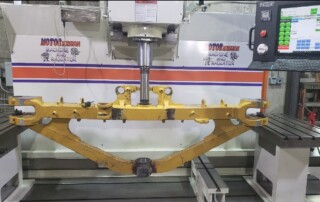

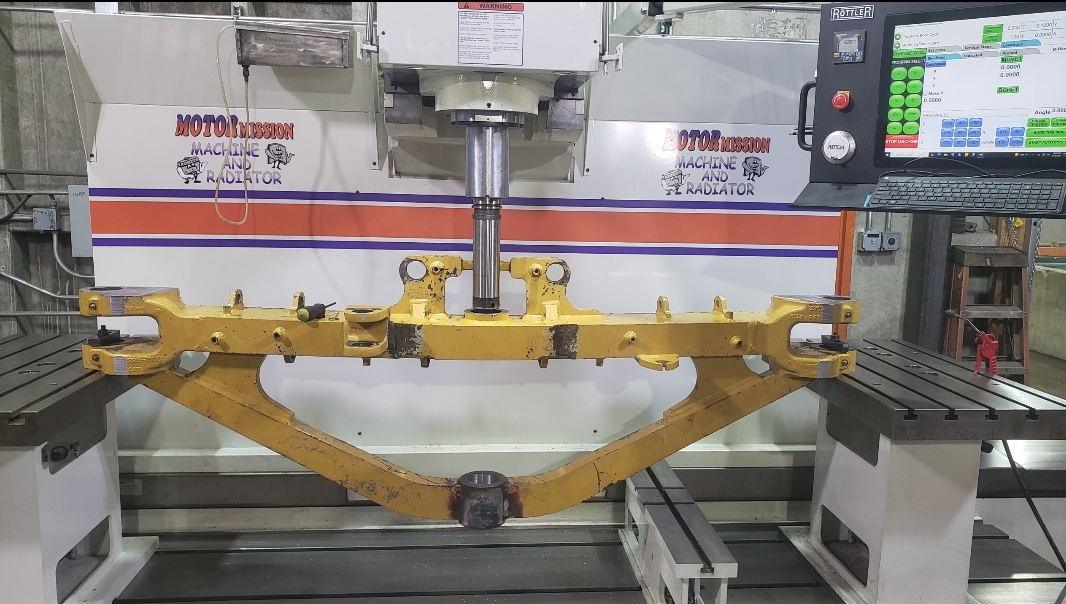

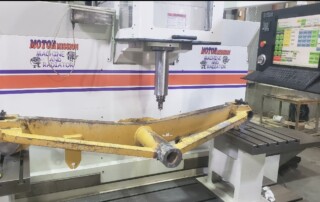

Here are some pics of a Caterpillar 14M grader axle we have in for a complete rebuild. We have all the coordinates mapped out on our Rottler CNC multipurpose boring & milling machine with the Renshaw probing system. All the worn surfaces & bores are getting machined & bored before welding them back up. The [...]
Here are some before & after pics of a hardnose radiator cooling package we reconditioned for a Caterpillar 834H RTD (Rubber Tire Dozer), or wheel dozer. The cooling system components included cleaning, repairing & rebuilding the aluminum modular radiator core sections, an oil cooler, the air-to-air or charge air cooler (aftercooler) and the AC (air [...]
Here are some pics of a Caterpillar 18M3 grader circle, drawbar table and moldboard blade hanger bracket we did a complete repair & rebuild to. The main beams on the drawbar table were both cracked all the way through. We cut the main beams off, straightened the table & welded new beams in place. The [...]
